Air Sparge / Soil Vapor Extraction Pilot System
The Air Sparge / Soil Vapor Extraction (SVE) Pilot System is a high-performance remediation system designed for pilot-scale testing and full-scale site cleanup applications. This system efficiently removes volatile organic compounds (VOCs) from contaminated soil and groundwater using a combination of air sparging and vapor extraction technologies. Engineered for reliable, continuous operation, this system features automated controls, real-time monitoring, and high-efficiency components for optimal performance in environmental remediation projects.
Key Features & Capabilities:
✔ Dual-System Design – Integrates Soil Vapor Extraction (SVE) and Air Sparging (AS) for enhanced contaminant removal.
✔ High-Capacity Performance – Designed for efficient extraction of vapors and injection of air to accelerate site cleanup.
✔ Automated Control System – Features real-time monitoring, alarm alerts, and data logging for precise operational adjustments.
✔ Rugged & Field-Ready – Built with high-quality, industrial-grade materials to withstand demanding environmental conditions.
✔ Portable Trailer-Mounted System – Compact design for easy transport, setup, and deployment at remediation sites.
Soil Vapor Extraction (SVE) System:
🔹 Squire Cogswell Model C15 TEFC Blower (Class 1, Div. 2)
✔ 15 HP WEG 208-230/460V Three-Phase TEFC Motor
✔ Rated for 324 ACFM (88 SCFM) at 22” Hg (Blower rated up to 24” Hg)
✔ Integrated sound cover and exhaust silencer for low-noise operation
✔ Vacuum regulating valve for pressure control
✔ 4” inlet with vacuum gauge, temperature gauge, and sample port
✔ Premium 10-micron inline filter for debris protection
✔ Vacuum relief valve (field adjustable)
✔ Differential pressure monitoring via Magnehelic gauge

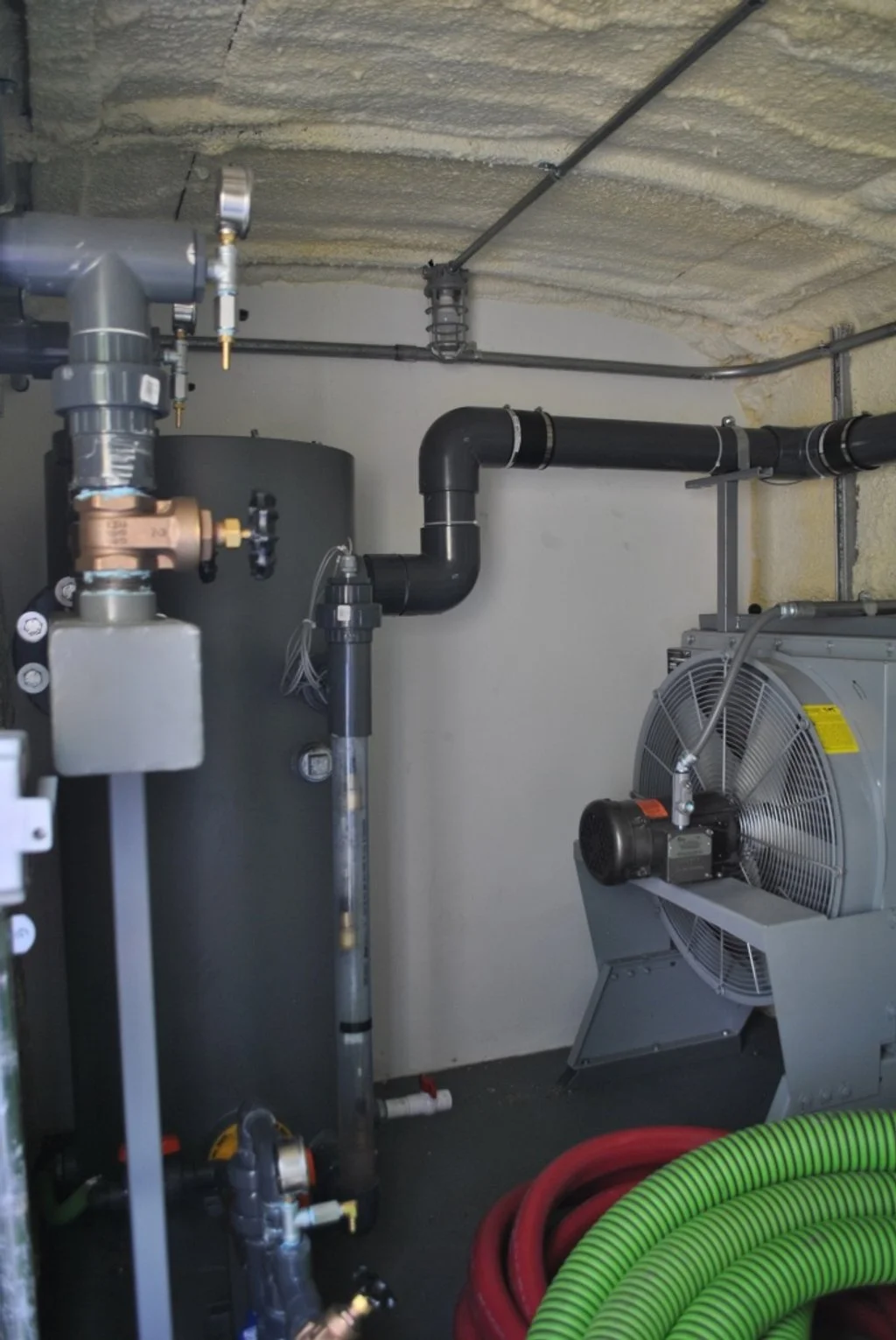

🔹 Fliteway 117-Gallon Cyclonic Knockout Tank (Carbon Steel)
✔ Internal demister pads for effective moisture removal
✔ Automatic Transfer Pump System with ¾ HP Moyno Progressive Cavity Pump
✔ High-High Level & High-Level Pump-On Float Switches for liquid level control
✔ Totalizing flow meter and recirculation loop for enhanced operational monitoring
Air Sparging System:
🔹 Mattei ERC511L Rotary Vane Air Compressor
✔ 67 CFM at 125 PSIG
✔ 15 HP TEFC Motor (208-230/460V Three Phase)

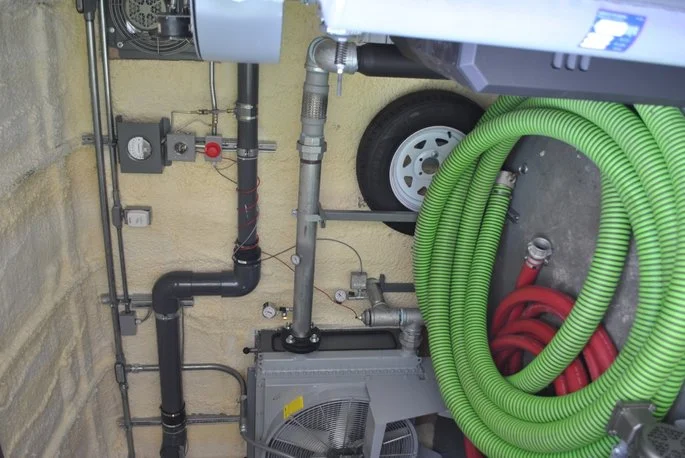

✔ Air-cooled aftercooler (vented through trailer wall)
✔ Automatic condensate separator and drain valve
✔ 80-Gallon ASME Air Storage Tank
✔ 1” Direct Read Flow Meter & Solenoid Dump Valve
✔ 1” Pressure Regulator, Particulate Filter, & Coalescing Filter
Automated Control System:
🔹 NEMA 4 Control Panel (230/460V Three Phase) with Integrated Safety & Monitoring
✔ VFD for 15 HP SVE Motor for variable speed operation
✔ High Voltage Panel (Lockable, Vented with Inner Panel)
✔ Low Voltage Operator Controls (NEMA 4, Lockable)
✔ Relay Logic & Branch Service Protection
✔ Motor Starter & Overload Protection for Pumps
✔ Alarm & Monitoring System
✔ SVE Motor Fault Alarm
✔ SVE High-High Level (HHL) Alarm
✔ SVE Inlet Low Vacuum Alarm
✔ Alarm Reset Button & Digital Display
Applications:
✔ Soil & Groundwater Remediation – Effective for removing VOCs and other contaminants.
✔ Pilot Testing for Full-Scale Design – Provides real-world performance data for larger remediation systems.
✔ Environmental Cleanup Projects – Used in industrial, municipal, and regulatory compliance efforts.
This system is available for sale or rental, offering a cost-effective solution for environmental consultants, remediation contractors, and regulatory agencies looking to optimize site cleanup before full-scale implementation.
📞 Contact us today for pricing, availability, and expert consultation!
